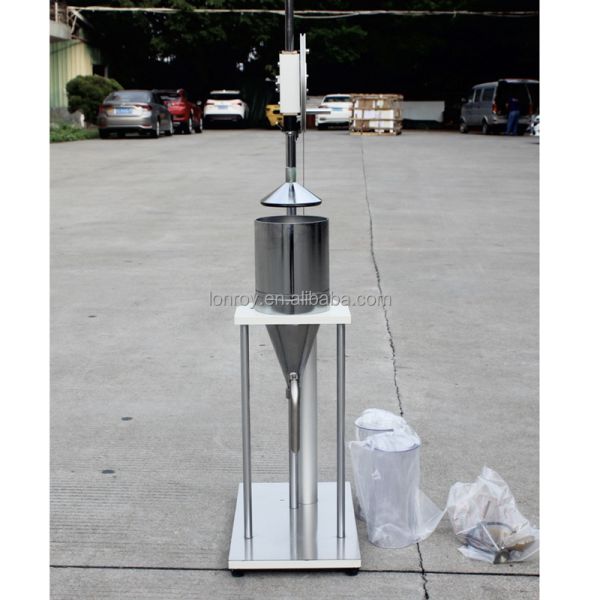

Schopper-Riegler beating pulp testing machine tester

Beating degree tester is also called knocking degree tester (pulp beating degree tester/beating degree tester 1 beating degree tester) knocking degree tester, beating degree tester is a special instrument for the determination of pulp water filtration performance. According to the phenomenon that the knocking degree of pulp is inversely proportional to the filtration rate of pulp suspension, the instrument studies the fiber condition and evaluates the degree of pulp beating. The paper pulp beating degree tester is a conventional laboratory test instrument designed according to the principle of Schober-Rigler method. Schopper-Riegler method is a conventional method to measure the filtration rate of diluted pulp suspension.

Schopper-Riegler beating pulp testing machine tester

Implementation standards:

1.ISO5267/1 "Pulp - determination of water filtration properties Part 1: Schober - Rigler method"

2.GB3332 "The determination of pulp degree" the relevant provisions

Technical parameters:

1. Measurement range: (1~100) SR (Schopper-Riegler);

2. Sealing cone rising speed: (100±10)mm/s;

3. Index value of quantity cylinder: 1SR;

4. Overflow port discharge time: (149±1)s;

5. Remaining volume: (7.5~8)ml;

6. Environmental conditions: indoor temperature (20 ± 10) ° C;

7. Relative humidity :<85%;

8. Overall size: (450 × 250 × 1000) mm

9.Weight: about 45kg

Standard fittings
