ASTM D562 Krebs Stormer KU Viscometer /Stormer viscometer

Use

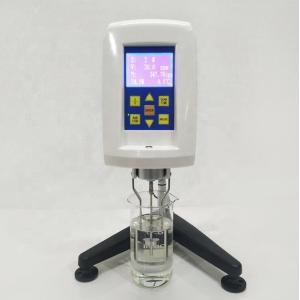

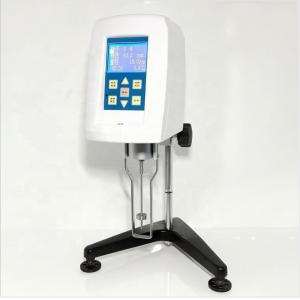

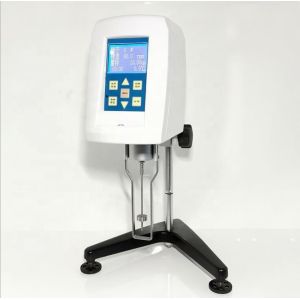

STM-2T Stormer viscometer is widely used to determine the paint, ink, paint or other KU values to represent the viscosity of the industry, in line with international standards ASTM, D562 and GB9296 and other related standards.

ASTM D562 Krebs Stormer KU Viscometer /Stormer viscometer

1. Main features:

1. The operation interface is simple and clear, and the viscosity test can be done quickly and conveniently through the creation of test program and data analysis;

2. Viscosity measurement accuracy: automatic calibration by computer, high precision, small error;

3. The display rich content: in addition to KU, G, CP of the three commonly used parameters, and temperature measurements for the full-scale value percentage (graphics), viscosity curve, range overflow alarm, timing, clock date, etc.;

4.Timing measurement: very practical. We measured the paint, ink, paint is a typical non Newtonian fluid, the viscosity and temperature on the outside (except the temperature rise, but also with the decrease of viscosity) measurement time length. The paint has ink and paint is shear thinning characteristics, the longer the time of measurement of viscosity the smaller, if the viscosity of samples of the same class are comparable, the measurement time must be the same;

5.Self built 30 sets of test procedures: can be compiled, can quickly call;

6. Access to 30 sets of measurement data and curves; stored in the viscometer, the data include sample name, KU, G, CP value, measurement date, etc.;

7.The real-time display of the viscosity curve: on the screen at any time watch;

8. Can connect micro printer and computer: there are two interfaces, serial connection computer, parallel port connection printer;

9. The front level: the rotor is vertically placed in the sample, it is important to the accuracy of measurement data. Through the observation level in front of the three foot level, which can conveniently adjust the base level of the bubble will be adjusted to the middle position (the current domestic Stormer viscometer on the market are not level regulating device);

10. Rich optional accessories: temperature probe, viscometer thermostat, constant temperature cup, printer, standard viscosity sample, etc.;

ASTM D562 Krebs Stormer KU Viscometer /Stormer viscometer

Detailed technical parameters
