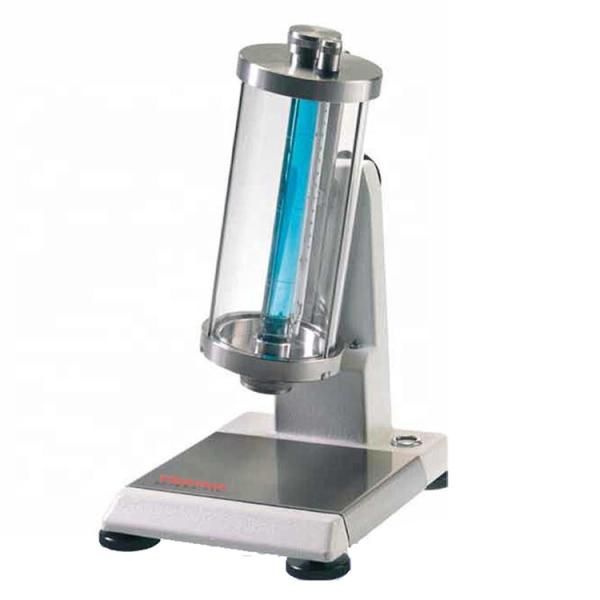

HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587

  • Product Details
  • Company Profile

HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587

HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587

Product overview

Uses:

The HAAKE falling ball viscometer C is an instrument for quasi-accurate measurement of the viscosity of transparent Newtonian fluids and gases. It meets the German DIN 53015 and ISO120587 standards, can be used as an official reference instrument. With the support of the accurate temperature control system of the circulator, its measurement accuracy is among the best among all viscometers.

HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587

Use Industry

Chemical industry (polymer solutions, solvents, inks)

Pharmaceutical industry (raw material, glycerin)

Food industry (gels, sugar solutions)

Mineral oil industry (oil, liquid carbon hydration compound)

Principle of measurement:

The roll of the ball in the sample liquid was timed in an inclined cylindrical measuring tube. The viscosity of the sample is related to the time it takes the ball to travel a certain distance. Turn the measuring tube over to make another measurement. Test results are given in mPas units of dynamic viscosity as specified in the international standard.

HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587

Specification

HAAK Falling Ball Viscometer Specification
Viscosity Range(mPas)0.5 - 100000
Temperature Range-1°C to +26°C
< 0.5 %
analogue< 1 %
Material

Drop tube, ball 1,2 and G borosilicate glass

Balls :3,4,5 and 6 nickel-iron alloys

Optional accessories

A stopwatch

G balls are used for gas measurements

Temperature sensor of pt100 for drop ball -D50 circulator
