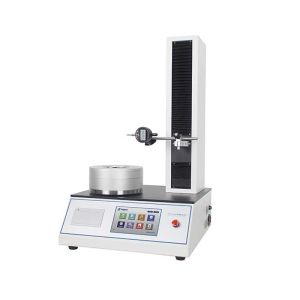

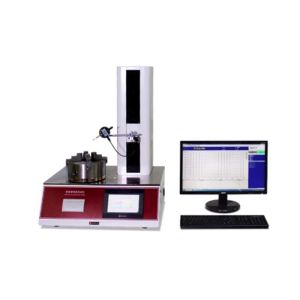

    Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine

    Ask Lasest Price
    Model Number : LR-F063
    Brand Name : Lonroy
    Price : Negotaible
    Delivery Time : 5-8 work days
    Supply Ability : 200
    Certification : ISO ASTM CE
    Payment Terms : L/C,D/A,D/P,T/T,Western Union
    • Product Details
    • Company Profile

    Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine

    Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine

    1. Product Character

    1. 7 inch touch color LCD, controlled by microcomputer, automatic grouping statistics of maximum, minimum and average value.
    2. Support vertical axis deviation and circular beat mode switching, one machine dual use.
    3. Measurement deviation Angle of 360 ° full compensation, to ensure that the measurements are more accurate.
    4. The system has a micro printer, and the data of the upper computer is stored unlimited.
    5. Professional computer measurement and control software, curve chart display, data preservation, EXCEL statistics, printing A4 test report.
    6. Software users hierarchical authority management, data statistics and auditing functions meet industry requirements.


    2. Test Principle
    The bottle a fixed in a horizontal plate and rotating plate, make the bottle mouth contact with dial gauge, rotate 360 ° read the maximum and minimum, 1/2 of the difference between the two is the vertical axis deviation value.

    Test standard
    The instrument meets a number of test standards:
    Ybb00332002-2015 low borosilicate glass ampoules
    Ybb00332003-2015 sodium calcium glass controlled injection bottle
    Ybb00032004-2015 sodium calcium glass controlled oral liquid bottle
    GB/T 8452-2008 test method for vertical shaft deviation of glass bottles and cans
    GB 2639, QB 2357, QB/T 1868


    3. Application Area

    Base applicationCircular runout testSuitable for round beating test of glass ampoules.
    Vertical shaft deviation testIt is suitable for testing vertical shaft deviation of glass controlled drug bottle, glass controlled drug bottle, glass controlled injection bottle, glass molded injection bottle, oral liquid bottle and cosmetic glass bottle.
    ApplicationVertical shaft deviation testIt is suitable for testing vertical axis deviation of glass containers such as glass infusion bottle, beer bottle, liquor bottle and wine bottle.
    Vertical shaft deviation testIt is suitable for testing vertical axis deviation of plastic container bottles such as mineral water plastic bottle and carbonated beverage plastic bottle.
